Fujitsu-Siemens AMILO Li1705, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $15.00 Major components CPU :Intel Yonah Celeron Thermal Sensor :GMT G796 North Bridge :VIA VN896 South Bridge :VIA VT8237A Video :UMA (LVDS VT1634AL) Clock Generator :ICS953009AFLF-T,ICS9P936AFLF-T Audio Codec :VT1708A Audio Amplifier :G1432 + G1410 KBC(Embeded Controller),SIO :M3885X,PMU08 LAN Controller :VT6103L <Power System> ISL6262CRZ-T MB3887PFV-ERE1 MM1380AWBE MAX8734AEEI+ QFN28 SC486IMLTRT SC411MLTRT APL5912-KAC-TRL G1117T63UF APL5331KA-TRL G916T1UF Total Pages : 30 File type : PDF Language : English

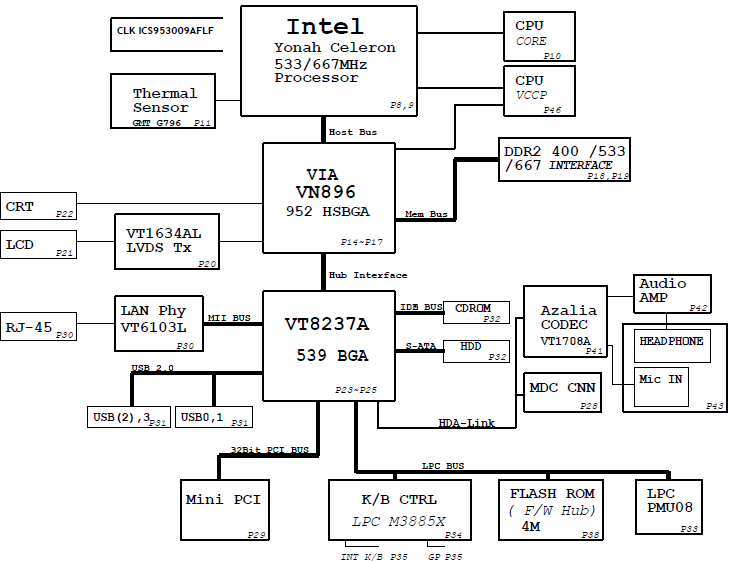

Click on picture to enlarge

Price: US $15.00

Major components

CPU :Intel Yonah Celeron
Thermal Sensor :GMT G796
North Bridge :VIA VN896
South Bridge :VIA VT8237A
Video :UMA (LVDS VT1634AL)
Clock Generator :ICS953009AFLF-T,ICS9P936AFLF-T
Audio Codec :VT1708A
Audio Amplifier :G1432 + G1410
KBC(Embeded Controller),SIO :M3885X,PMU08
LAN Controller :VT6103L

<Power System>

ISL6262CRZ-T
MB3887PFV-ERE1
MM1380AWBE
MAX8734AEEI+ QFN28
SC486IMLTRT
SC411MLTRT
APL5912-KAC-TRL
G1117T63UF
APL5331KA-TRL
G916T1UF

Total Pages : 30
File type : PDF
Language : English

Updated: 07-02-2010
