Fujitsu-Siemens AMILO L7320, Motherboard schematic diagram Schematic diagram

Click on picture to enlarge	Price: US $11.25 Major components CPU :Intel Yonah Celeron Thermal Sensor :GMT G795 North Bridge :VIA VN800 South Bridge :VIA VT8237 Video :UniChrome Pro (LVDS VT1631) Clock Generator :ICS952906BF Audio Codec :ALC655 Audio Amplifier :G1432 + G1410 KBC(Embeded Controller),SIO :M3885X / PMU08 LAN Controller :VT6103L CardBUS/1394/Cardreader Contr.:CB1410 <Power System> MB3887PFV MM1380AWBE MAX8734AEEI+ ISL6227CA G1117T63U G1117T63U G1117T63U G2996F1U FAN5234QSCX Total Pages : 55 File type : PDF Language : English

Click on picture to enlarge

Price: US $11.25

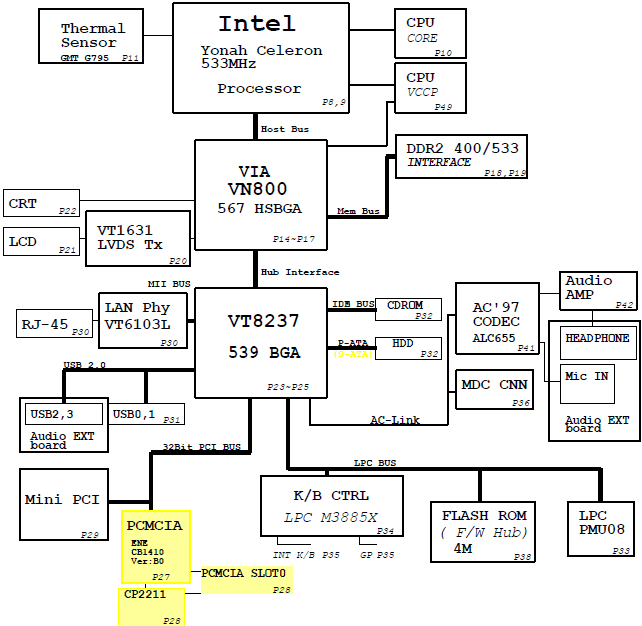

Major components

CPU :Intel Yonah Celeron
Thermal Sensor :GMT G795
North Bridge :VIA VN800
South Bridge :VIA VT8237
Video :UniChrome Pro (LVDS VT1631)
Clock Generator :ICS952906BF
Audio Codec :ALC655
Audio Amplifier :G1432 + G1410
KBC(Embeded Controller),SIO :M3885X / PMU08
LAN Controller :VT6103L
CardBUS/1394/Cardreader Contr.:CB1410

<Power System>

MB3887PFV
MM1380AWBE
MAX8734AEEI+
ISL6227CA
G1117T63U
G1117T63U
G1117T63U
G2996F1U
FAN5234QSCX

Total Pages : 55
File type : PDF
Language : English
