Acer Aspire A315-33 , Motherboard BoardView file and Schematic diagram

Click on picture to enlarge	Price: US $18.75 Also included: — Boardview file and BoardView software (Top Test BV2000 and OpenBoardview) — Power Sequence Timing diagram — Power Block diagram — 2 Additional schematic diagrams for daughter boards: USB (I/O) and LID Boards Major components: CPU: Intel Braswell-M + DDR3L GPU: UMA EC: KB9022 File type : PDF (Searchable!) Language : English

Click on picture to enlarge

Price: US $18.75

Also included:

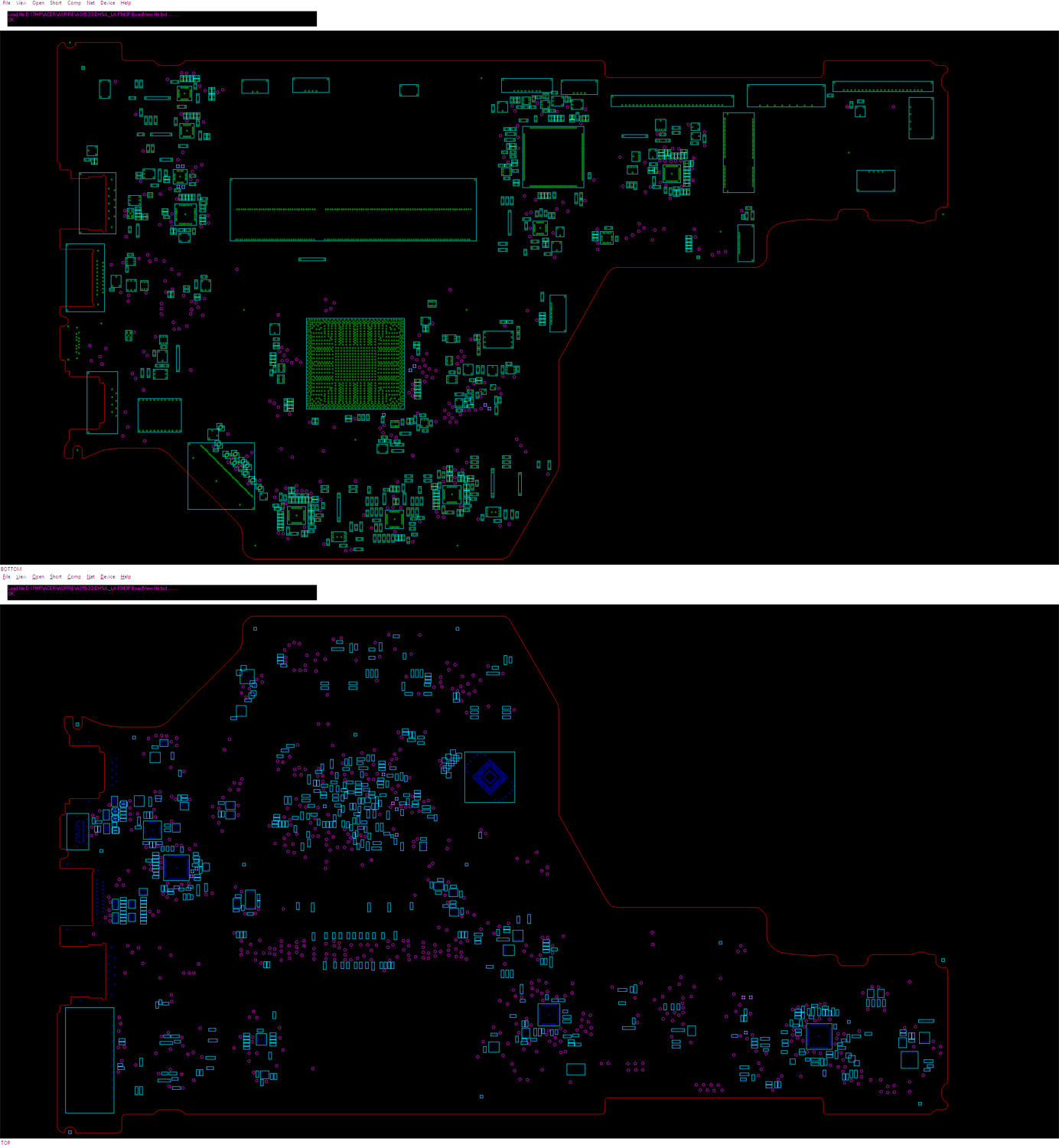

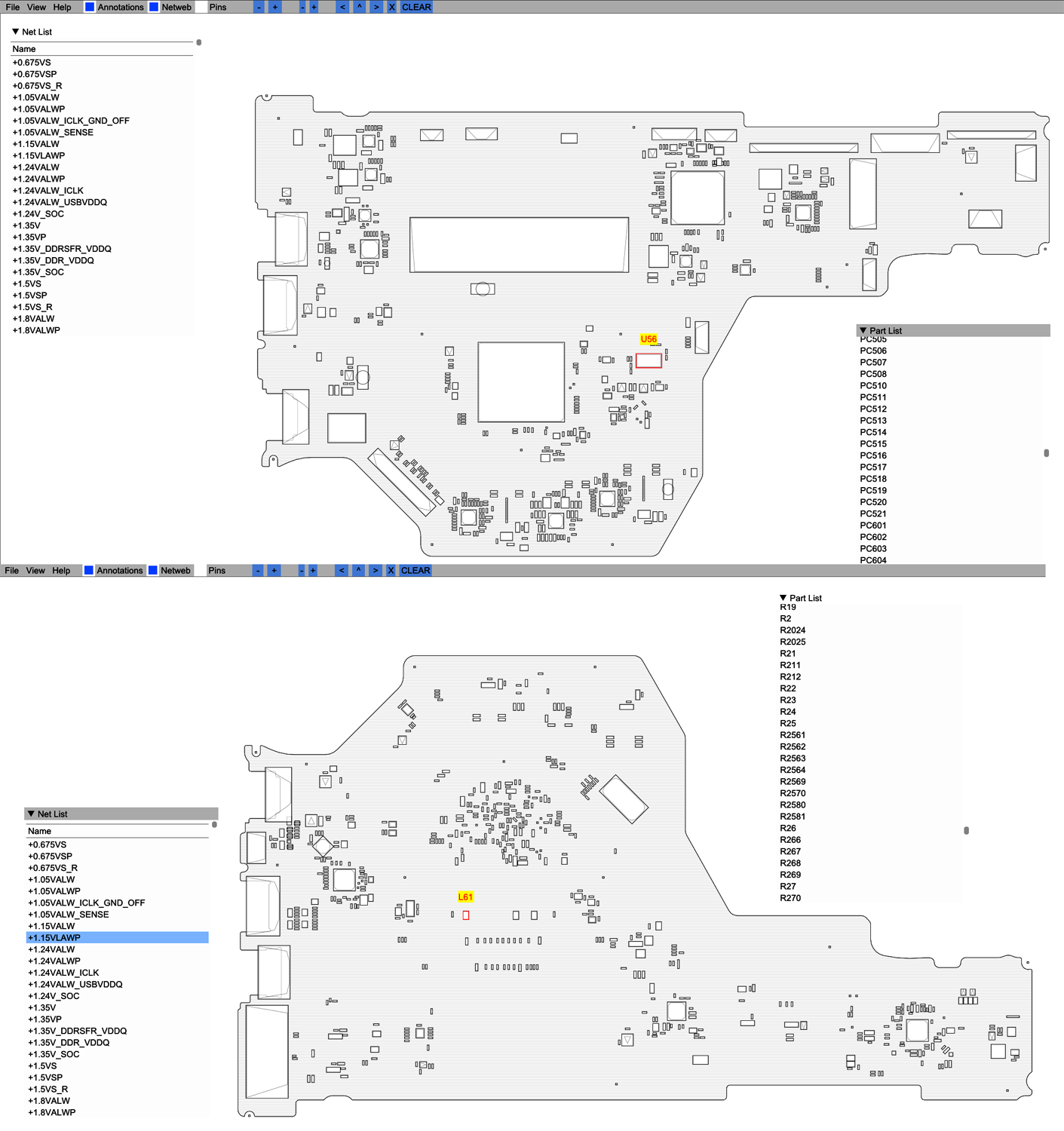

— Boardview file and BoardView software (Top Test BV2000 and OpenBoardview)
— Power Sequence Timing diagram

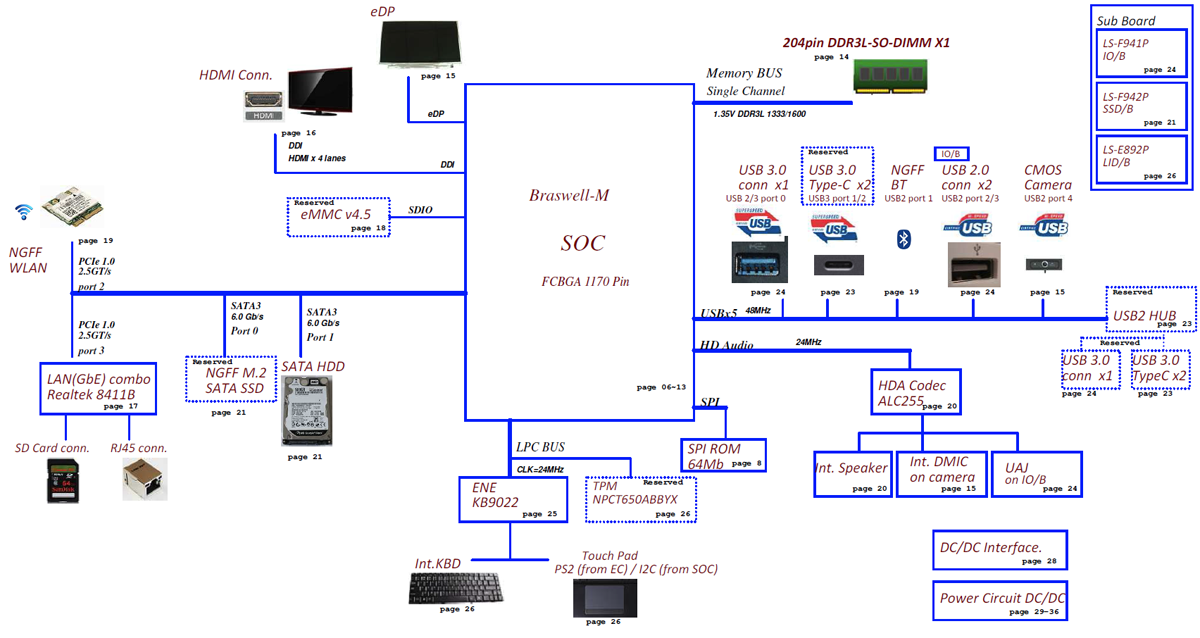

— Power Block diagram
— 2 Additional schematic diagrams for daughter boards: USB (I/O) and LID Boards

Major components:

CPU: Intel Braswell-M + DDR3L
GPU: UMA
EC: KB9022

File type : PDF (Searchable!)
Language : English

Updated: 28-10-2021
